Brightway can provide the oil drilling rig, includes: ZJ20(550HP) ZJ30(750HP) ZJ40(1000HP) ZJ50(1500HP) ZJ70(2000HP) ZJ80(2500HP) ZJ90(3000HP) ZJ120(3500HP) ZJ150(4500HP) drilling rig.

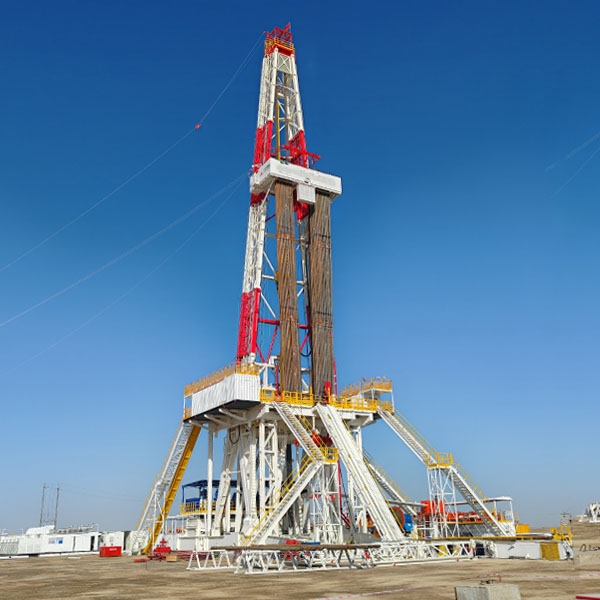

ZJ40 (1000HP) drilling rig
ZJ40 (1000HP) drilling rig: a mid to high end drilling equipment equipped with an intelligent control system that can achieve real-time monitoring and precise control of drilling parameters, improve drilling accuracy, and enhance the equipment’s impact resistance, suitable for mid to deep drilling operations.
| ZJ40（1000HP）Rig | Technical Specifications |
|---|---|
| Nominal drilling depth range | 4½” Drill pipe：4000m 5″ Drill pipe：3200～3500m |
| Max. hook load | 2250 kN（≈230 t） |
| Rated power of winch | 1100 kW（≈1500HP） |
| Hoisting system | Structure of pulley block: 5×6 (crown block with 5 wheels and traveling block with 6 wheels), and diameter of wire rope: φ35 mm (common specification). |
| Rotary table | Model：ZP275 or ZP375 Diameter：698.5 mm（27½”）or 952.5 mm（37½”）Maximum static load：4500 kN |
| Top drive system (if equipped) rated load: | 3500 kN. Continuous working torque: 30 ~ 40 kN m |
| Drilling pump | Model：3NB-1300 or F-1300 Power：960 kW（1300HP）×2, Maximum displacement：40～45 L/s Rated pressure：35～40 MPa |
| Base | Type: Shuang Sheng type or box stacking type. Height of drill floor: 7.5 ~ 9m (adjustable) |
| Power system | Total power of diesel engine: about 3000～4000 kW (such as CAT 3512 or 3400 series), Generator set: 400 ~ 800 kW× 4 sets |
| Drive mode | Mechanical drive (chain/gear) or electric drive (AC frequency conversion /SCR) |
| Control mode | Gas control and electrical control |
| Acclimation | Working temperature:-30℃ ~ 50℃ Suitable for working conditions on land, desert or Gobi |

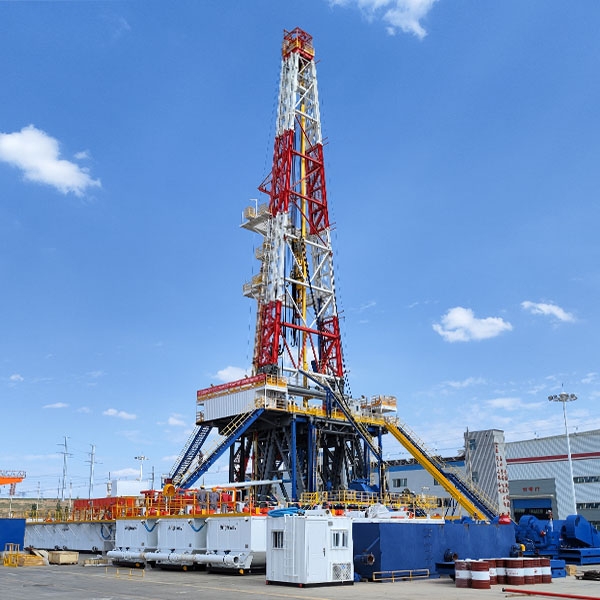

ZJ50 (1500HP) drilling rig
ZJ50 (1500HP) drilling rig: a high-power and efficient drilling rig, with imported core components for its power system. It has stable output and strong explosive power, and can cope with complex geological conditions. It is suitable for large-scale development and drilling operations in medium and deep oil and gas fields.
| ZJ50（1500HP）Rig | Technical Specifications |
|---|---|
| Nominal drilling depth range | 4½” drill pipe:5000～6000m 5″ drill pipe:3500～4500m |
| Max. hook load | 3150 kN（≈320t） |
| Rated power of winch | 1100 kW（≈1500HP） |
| Hoisting system | Structure of pulley block: 5×6 (crown block with 5 wheels and traveling block with 6 wheels), and diameter of wire rope: φ35 mm (common specification). |
| Rotary table | Model:ZP275 or ZP375, Diameter:698.5 mm（27½”）or 952.5 mm（37½”）, Maximum static load:4500 kN, Maximum static load：4500 kN |
| Top drive system (if equipped) rated load: | 3500 kN.Continuous working torque: 30 ~ 40 kN m |
| Drilling pump | Model:3NB-1300 or F-1300, Power:960 kW（1300HP）×2, Maximum displacement:40～45 L/s, Rated pressure:35～40 MPa |
| Base | Type: Shuang Sheng type or box stacking type. Height of drill floor: 7.5 ~ 9m (adjustable) |
| Power system | Total power of diesel engine: about 3000～4000 kW (such as CAT 3512 or 3400 series), Generator set: 400 ~ 800 kW× 4 sets |
| Drive mode | Mechanical drive (chain/gear) or electric drive (AC frequency conversion /SCR) |
| Control mode | Gas control and electrical control |
| Acclimation | Working temperature:-30℃ ~ 50℃, Suitable for working conditions on land, desert or Gobi |
ZJ70 (2000HP) drilling rig
ZJ70 (2000HP) drilling rig: a high-end deep well drilling equipment with deep penetration capability. It adopts high-strength drilling tower and lifting system, which can meet the drilling needs of deep and ultra deep wells. At the same time, it is equipped with a complete safety protection system to ensure the safety of operators and equipment.
| ZJ70（2500HP）Rig | Technical Specifications |
|---|---|
| Nominal drilling depth range | 4½” drill pipe 5″ drill pipe:5000～6000m |
| Max. hook load | 4500 kN（≈459 t） |
| Rated power of winch | 1470kW（≈2000HP） |
| Hoisting system | Structure of pulley block: 6×7 (crown block with 6 wheels and traveling block with 7 wheels), and diameter of wire rope: φ38 mm (common specification). |
| Rotary table | Model:ZP375 Or type Diameter：952.5 mm（37½”） Maximum static load:6750 kN |
| Top drive system (if equipped) rated load: | 5000 kN. Continuous working torque: 40 ~ 50 kN m |
| Drilling pump | Model:3NB-1300 or F-1300. Power:960 kW(1300HP)×2. Maximum displacement:40～45 L/s. Rated pressure:35～40 MPa |
| Base | Type: Shuang Sheng type or box stacking type. Height of drill floor: 9 ~ 10.5m (adjustable) |
| Power system | Total power of diesel engine: about 4000～5000 kW (such as CAT 3512 or EMD engine). Generator set: 600 ~ 1000 kW× 6 sets |
| Control mode | electric drive:AC-SCR-DC or AC frequency converter drive |
| Control mode | Gas control and electrical control |
| Acclimation | Working temperature:-30℃ ~ 50℃. Suitable for working conditions on land, desert or Gobi |
ZJ90 (3000HP) drilling rig
ZJ90 (3000HP) drilling rig: a super large power drilling rig designed for the development of ultra deep and complex oil and gas reservoirs, with super strong load capacity and stability, equipped with multiple redundant control systems to ensure continuous and stable operation under extreme operating conditions.
| ZJ90（3000HP）Rig | Technical Specifications |
|---|---|
| Nominal drilling depth range | 4½” drill pipe:9000～10000m, 5″ drill pipe:7000～8000m |
| Max. hook load | 5850 kN（≈600 t） |
| Rated power of winch | 2200kW（≈3000HP） |
| Hoisting system | Structure of pulley block: 7×8 (crown block with 7 wheels and traveling block with 8 wheels), and diameter of wire rope: 42~45 mm (common specification). |
| Rotary table | Model:ZP375 Or ZP495, Diameter:952.5 mm（37½”）, Maximum static load:9000 kN |
| Top drive system (if equipped) rated load: | 6500 kN. Continuous working torque: 75kN· m |
| Drilling pump | Model:3NB-2200 or F-2200 Power:1640kW（2200HP）×3 Maximum displacement:60 L/s Rated pressure:52 MPa |
| Base | Type: Shuang Sheng type or box stacking type. Height of drill floor: 10.5~ 12 m (Meet the installation of the blowout preventer) |
| Power system | Total power of diesel engine: about 6000～8000 kW (such as CAT 3512 or EMD engine), Generator set: 600 ~ 1000 kW× 6 sets |
| Control mode | AC frequency-converting electric drive (mainstream) or DC-SCR electric drive |
| Automatic configuration | Optional: Automatic pipe arrangement system, iron roughneck, hydraulic catwalk and digital driller’s room. |
| Acclimation | Working temperature:-30℃ ~ 50℃, Suitable for working conditions on land, desert or Gobi |
